Product Description
|
Specifications
|
||
|---|---|---|

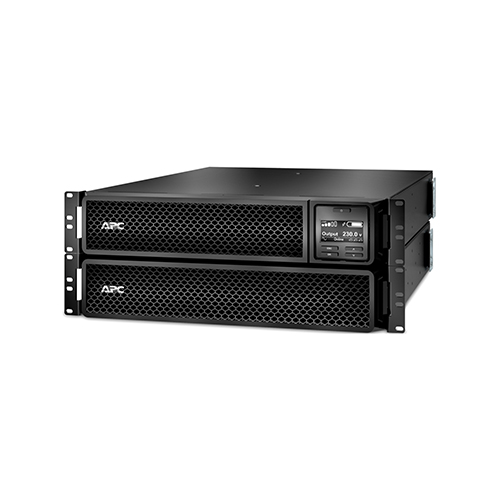

| Model | SRT3000RMXLI-NC | |
| Product Series | APC Smart-UPS SRT | |
| UPS Type / Topology | Online Double-Conversion | |
| Form Factor | Rack-Mount | |
| Rack Height | 2U | |
| Input Voltage | 230V AC (220 / 230 / 240V selectable) | |
| Input Voltage Range | 100–275V AC | |
| Input Frequency | 50 / 60 Hz auto-sensing | |
| Output Power Capacity | 3000 VA / 2700 W | |
| Output Voltage | 230V AC | |
| Output Waveform | Pure Sine Wave | |
| Efficiency | Up to 94% | |
| Surge Protection | Yes | |
| Outlets | 8 × IEC C13, 2 × IEC C19 | |
| Battery Type | Sealed Lead-Acid (VRLA), hot-swappable | |
| Battery Configuration | Internal batteries | |
| Typical Runtime (Full Load) | Approx. 4 minutes | |
| Typical Runtime (Half Load) | Approx. 11–12 minutes | |
| Battery Recharge Time | Approx. 3 hours | |
| Expandable Runtime | Yes, via external battery packs | |
| Network Management | Pre-installed Network Management Card | |
| Communication Interfaces | Ethernet, USB, Serial, SmartSlot | |
| Display | LCD status and control panel | |
| Emergency Power Off (EPO) | Supported | |
| Dimensions (H × W × D) | Approx. 85 × 432 × 635 mm | |
| Weight | Approx. 31 kg | |
| Operating Temperature | 0°C to 40°C | |
| Operating Humidity | 0–95% (non-condensing) | |
| Noise Level | Approx. 55 dB | |
| Certifications | CE, RoHS, IEC/EN 62040 | |
