Product Description
| Specification | Details |
|---|---|

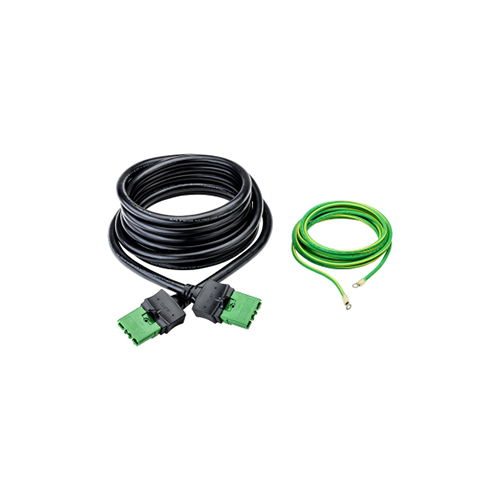

| Product Name | Smart-UPS SRT Extension Cable |
| Model / Part Number | SRT009 |
| Brand | APC |
| Manufacturer | APC by Schneider Electric |
| Product Type | UPS external battery extension cable |
| Compatibility | Smart-UPS SRT 2200VA UPS and matching external battery packs |
| Rated Voltage | 72 V DC |
| Cable Length | 15 ft (approx. 4.5 m) |
| Connection Type | 72 VDC battery connector for UPS / battery pack interface |
| Physical Dimensions (L×W×H) | 4572 mm × 381 mm × 51 mm (cable length overall × connector body width × connector height) |
| Net Weight | approx. 3.18 kg |
| Shipping Weight | approx. 4.09 kg |
| Purpose | Extends connection between UPS and external battery packs |
| Cable Construction | Heavy-duty DC power extension cable |
| Certifications / Compliance | RoHS compliant (environmentally friendly) |
| Package Includes | Extension cable and installation guide |
| Intended Use | Backup power system battery extension for Smart-UPS installations |
