Product Description
| Specification Category | Details |
|---|---|
| Manufacturer | APC by Schneider Electric |

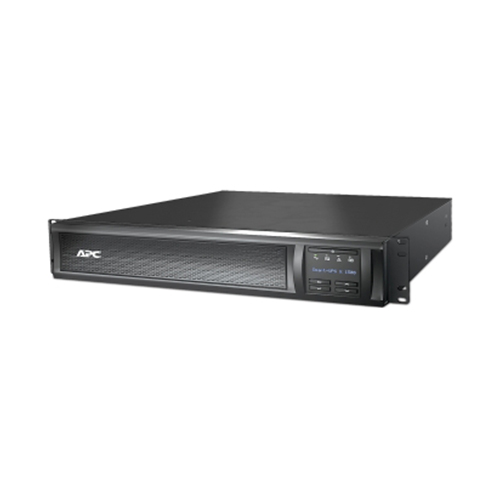

| Product / Model | Smart-UPS X 1500VA Rack/Tower LCD 230V – SMX1500RMI2UNC |
| UPS Type | Line-interactive UPS |
| Form Factor | Rack/Tower convertible |
| Output Power Capacity | 1500 VA / 1500 W |
| Nominal Output Voltage | 230 V AC |
| Output Frequency | 50/60 Hz (auto-sensing) |
| Waveform Type | Pure sine wave |
| Input Voltage Range | 230 V AC |
| Input Frequency | 50/60 Hz |
| Battery Type | Sealed lead-acid, maintenance-free |
| Battery Configuration | Internal batteries |
| Typical Runtime | Moderate (depends on load) |
| Hot-Swappable Batteries | Yes |
| Recharge Time | ~3 hours to 90% |
| Display | LCD status and control display |
| Network Management | Network management card included (for remote monitoring/control) |
| Communication Interfaces | Ethernet for network card, USB, Serial |
| Outlets | Combination of IEC output receptacles (varies by region) |
| Bypass | Automatic internal bypass |
| Surge Protection | Yes |
| EMI/RFI Filtering | Yes |
| Audible Alarms | Yes |
| Safety Certifications | Meets relevant international safety standards |
| Operating Temperature | 0 – 40 °C |
| Operating Humidity | 0 – 95 % non-condensing |
| Noise Level | Moderate (fan cooled) |
| Mounting Hardware | Rack ears included for rack installation |
| Weight | ~34 – 38 kg (varies by configuration) |
| Dimensions (HxWxD) | ~438 × 430 × 702 mm (varies by version) |
| Typical Application | Servers, networking gear, storage, and critical IT loads |
| Warranty | Manufacturer warranty (varies by region) |
