Product Description
|
Specifications
|
||
|---|---|---|
| Brand | APC | |

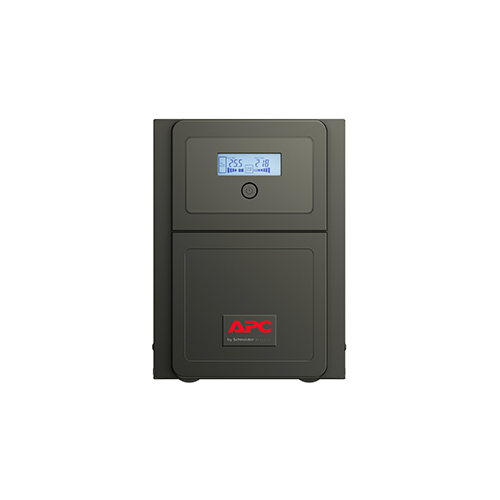

| Model | SMV1000I‑GR (Easy UPS SMV 1000VA) | |
| Product Type | Line‑Interactive UPS with AVR | |
| Rated Capacity | 1000 VA / 700 W | |
| Nominal Input Voltage | 230 V AC | |
| Input Voltage Range | Approx. 165 – 295 V AC | |
| Input Frequency | 45 – 65 Hz (auto‑sensing) | |
| Nominal Output Voltage | 230 V AC | |
| Output Frequency | 50 / 60 Hz ± 1 Hz | |
| Waveform Type | Sine wave | |
| Transfer Time | 2 – 6 ms typical (up to ~12 ms) | |
| Output Sockets | 4 × Schuko CEE 7 outlets | |
| Input Connector | IEC 60320 C14 | |
| Battery Type | Sealed lead‑acid battery | |
| Battery Configuration | 24 V battery system | |
| Typical Recharge Time | ~4 hours to ~90 % | |
| Estimated Runtime (Approx.) | A few minutes at full load | |
| Communication / Management | USB port for monitoring | |
| Indicators | LCD / LED status display | |
| Audible Alerts | Yes (low battery / overload) | |
| Dimensions (H × W × D) | ~220 × 160 × 410 mm | |
| Net Weight | ~13.6 kg | |
| Noise Level | ~45 dBA | |
| Operating Temperature | 0 – 40 °C | |
| Operating Humidity | 0 – 90 % non‑condensing | |
| Certifications / Standards | CE, IEC 62040 series | |
