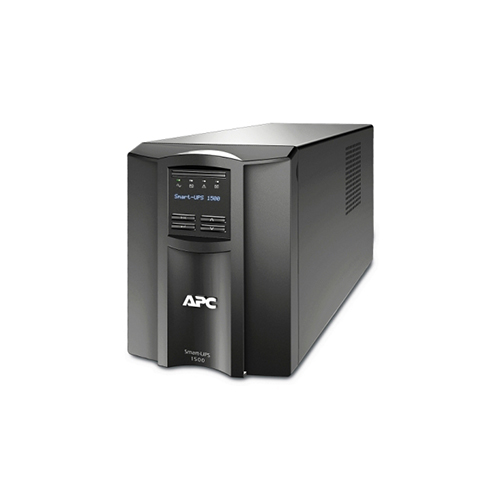

Product Description
| Specification | Details |
|---|---|
| Manufacturer | APC by Schneider Electric |
| Model | SMT1500I |
| Product Series | Smart-UPS |
| UPS Topology | Line-Interactive with Automatic Voltage Regulation (AVR) |
| Form Factor | Tower |
| Rated Capacity | 1500 VA / 1000 W |
| Nominal Input Voltage | 230 VAC |
| Input Voltage Range | Approx. 160 – 286 VAC |
| Input Frequency | 50/60 Hz (auto-sensing) |
| Nominal Output Voltage | 230 VAC (configurable to 220V/240V) |
| Output Waveform | Pure Sine Wave |
| Transfer Time | 2–4 ms typical |
| Input Connection | IEC 320 C14 |
| Output Connections | 8 × IEC 320 C13 (Battery & Surge Protected) |
| Surge Energy Rating | Approx. 459 Joules |
| Battery Type | Sealed, maintenance-free lead-acid |
| Replaceable Battery Cartridge | RBC7 (user replaceable) |
| Typical Recharge Time | Approx. 3 hours |
| Typical Runtime | ~6–8 minutes at full load (1000W); longer at lighter loads |
| Display | Multifunction LCD status display |
| Communication Ports | USB, SmartSlot (for optional network card) |
| Operating Temperature | 0°C – 40°C |
| Color | Black |
| Typical Applications | Servers, network equipment, storage systems, IT environments |
