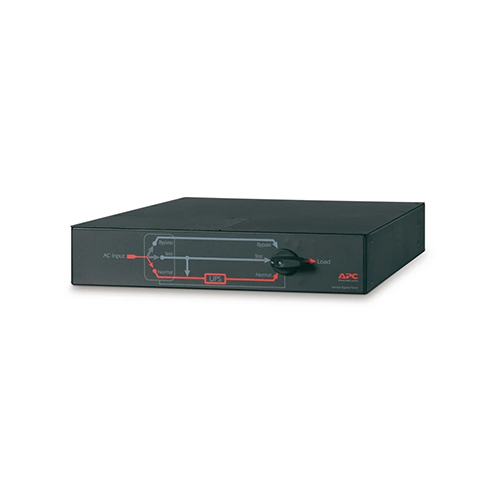

APC SBP6KRMI2U Service Bypass Panel, 230V, 32A, MBB, Hardwire Input, (4) IEC 320 C19 Outputs Price in Dubai UAE
APC SBP6KRMI2U Service Bypass Panel, 230V, 32A, MBB, Hardwire Input, (4) IEC 320 C19 Outputs Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Product Name | APC Service Bypass Panel | |
| Model Number | SBP6KRMI2U | |
| Product Type | Maintenance / Service Bypass Panel | |
| Bypass Type | Manual Bypass Breaker (MBB) | |
| Nominal Input Voltage | 230 V AC | |
| Nominal Output Voltage | 230 V AC | |
| Input Frequency | 50 / 60 Hz | |
| Maximum Input Current | 32 A | |
| Maximum Output Current | 32 A | |
| Maximum Load Capacity | 7.68 kVA | |
| Power Factor Range | 0 – 1 | |
| Input Connection Type | Hardwire (1 Phase + Neutral + Earth) | |
| Output Connections | (4) IEC 60320 C19 | |
| Overload Protection | Circuit Breaker | |
| Efficiency | Up to 99% | |
| Form Factor | Rack-mountable | |
| Rack Height | 2U | |
| Height | 89 mm | |
| Width | 432 mm | |
| Depth | 660 mm | |
| Net Weight | 11.36 kg | |
| Colour | Black | |
| Operating Temperature | -20 °C to 50 °C | |
| Operating Relative Humidity | 0% – 95% (non-condensing) | |
| Operating Elevation | Up to 4,572 m | |
| Storage Temperature | -40 °C to 65 °C | |
| Storage Relative Humidity | 0% – 95% (non-condensing) | |
| Storage Elevation | Up to 15,240 m | |
| Certifications / Compliance | CSA, GOST (region dependent) | |
