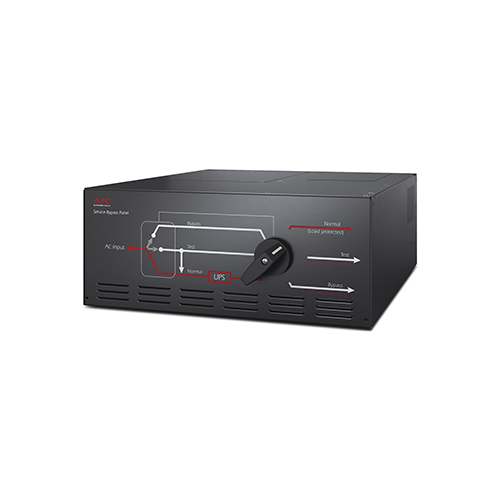

APC SBP20KRMI4U Service Bypass Panel 230V, 125A MBB, HW Input, 8 × IEC-320 C19 Output Price in Dubai UAE
APC SBP20KRMI4U Service Bypass Panel 230V, 125A MBB, HW Input, 8 × IEC-320 C19 Output Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Brand | APC | |
| Model | SBP20KRMI4U | |
| Product Type | Service Bypass Panel | |
| Nominal Input Voltage | 220 V / 230 V / 240 V (single‑phase) and 380 V / 400 V / 415 V (three‑phase) | |
| Input Frequency | 50 / 60 Hz | |
| Input Connections | Hard‑wire 3‑wire (1 P + N + E) and hard‑wire 5‑wire (3 P + N + E) | |
| Maximum Input Current | 125 A | |
| Load Capacity | 20 000 VA | |
| Load Power Factor Range | 0 to 1 | |
| Nominal Output Voltage | 230 V | |
| Other Output Voltages | 220 V, 240 V | |
| Maximum Total Current Draw | 125 A | |
| Output Connections | 8 × IEC‑60320 C19 | |
| Overload Protection | Yes (circuit breaker) | |
| Efficiency at Full Load | ~99 % | |
| Rack Height | 4U | |
| Net Weight | ~18.78 kg | |
| Dimensions (H × W × D) | ~178 mm × 432 mm × 572 mm | |
| Color | Black | |
| Operating Temperature | –20 °C to 50 °C | |
| Operating Humidity | 0 – 95 % non‑condensing | |
| Operating Elevation | Up to ~4500 m | |
| Storage Temperature | –40 °C to 65 °C | |
| Storage Humidity | 0 – 95 % non‑condensing | |
| Certifications / Standards | CSA, EN 60950, GOST, IEC 60950, UL 1778; RoHS / REACH compliant | |
| Mounting Type | Rack‑mounted (front) | |
| Included Accessories | Installation guide, rack mounting brackets, user manual | |
