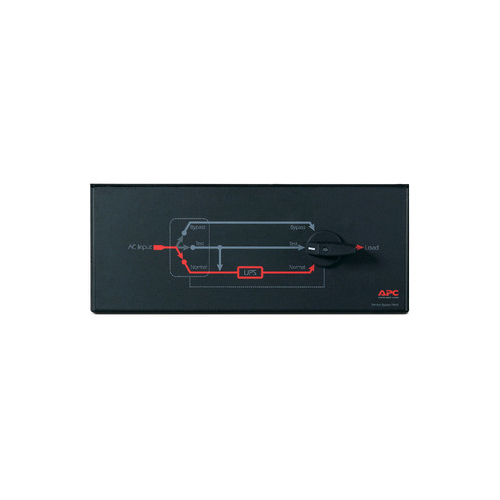

APC SBP16KRMI4U Service Bypass Panel, 230V, 100A, MBB, Hardwire Input, (3) 30A Hardwire Outputs Price in Dubai UAE
APC SBP16KRMI4U Service Bypass Panel, 230V, 100A, MBB, Hardwire Input, (3) 30A Hardwire Outputs Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Product Name | APC Service Bypass Panel | |
| Model Number | SBP16KRMI4U | |
| Product Type | Maintenance / Service Bypass Panel | |
| Bypass Type | Manual Bypass Breaker (MBB) | |
| Nominal Input Voltage | 230 V AC | |
| Nominal Output Voltage | 230 V AC | |
| Input Frequency | 50 / 60 Hz | |
| Maximum Input Current | 100 A | |
| Maximum Output Current | 100 A | |
| Maximum Load Capacity | 23 kVA | |
| Power Factor Range | 0 – 1 | |
| Input Connection Type | Hardwire | |
| Output Connections | (3) Hardwire 30 A | |
| Overload Protection | Circuit Breaker | |
| Efficiency | Up to 99% | |
| Form Factor | Rack-mountable | |
| Rack Height | 4U | |
| Height | 178 mm | |
| Width | 432 mm | |
| Depth | 660 mm | |
| Net Weight | Approx. 28 kg | |
| Colour | Black | |
| Operating Temperature | -20 °C to 50 °C | |
| Operating Relative Humidity | 0% – 95% (non-condensing) | |
| Operating Elevation | Up to 4,572 m | |
| Storage Temperature | -40 °C to 65 °C | |
| Storage Relative Humidity | 0% – 95% (non-condensing) | |
| Storage Elevation | Up to 15,240 m | |
| Certifications / Compliance | UL, CSA (region dependent) | |
