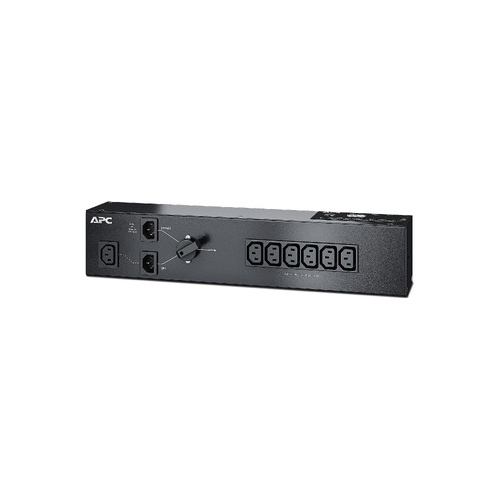

APC SBP1500RMI Service Bypass Panel, 230V, 10A, BBM, IEC C14 Input, (6) IEC C13 Outputs Price in Dubai UAE
APC SBP1500RMI Service Bypass Panel, 230V, 10A, BBM, IEC C14 Input, (6) IEC C13 Outputs Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Product Name | APC Service Bypass Panel | |
| Model Number | SBP1500RMI | |
| Product Type | Maintenance / Service Bypass Panel | |
| Bypass Type | Breaker Bypass Module (BBM) | |
| Nominal Input Voltage | 230 V AC | |
| Nominal Output Voltage | 230 V AC | |
| Input Frequency | 50 / 60 Hz | |
| Maximum Input Current | 10 A | |
| Maximum Output Current | 10 A | |
| Maximum Load Capacity | 2.3 kVA | |
| Power Factor Range | 0 – 1 | |
| Input Connection Type | IEC C14 | |
| Output Connections | (6) IEC C13 | |
| Overload Protection | Circuit Breaker | |
| Efficiency | Up to 99% | |
| Form Factor | Rack-mountable | |
| Rack Height | 1U | |
| Height | 44 mm | |
| Width | 432 mm | |
| Depth | 300 mm | |
| Net Weight | Approx. 5 kg | |
| Colour | Black | |
| Operating Temperature | -20 °C to 50 °C | |
| Operating Relative Humidity | 0% – 95% (non-condensing) | |
| Operating Elevation | Up to 4,572 m | |
| Storage Temperature | -40 °C to 65 °C | |
| Storage Relative Humidity | 0% – 95% (non-condensing) | |
| Storage Elevation | Up to 15,240 m | |
| Certifications / Compliance | UL, CSA (region dependent) | |
