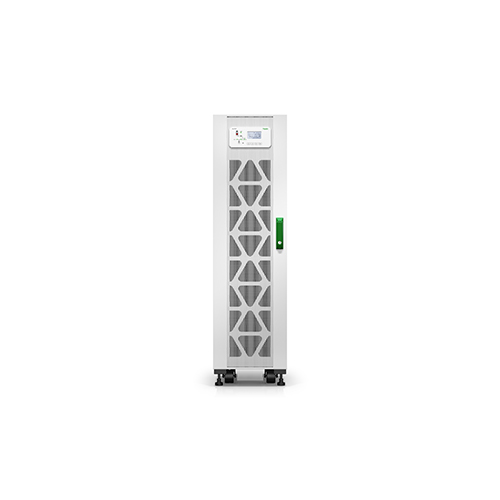

APC E3SUPS20K3IB2 Easy UPS 3S 20kVA 400V 3:1 UPS with 3 Internal 7Ah Modular Battery Strings Price in Dubai UAE
APC E3SUPS20K3IB2 Easy UPS 3S 20kVA 400V 3:1 UPS with 3 Internal 7Ah Modular Battery Strings Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Rated Power | 20 kVA / 20 kW | |
| UPS Topology | Double‑conversion Online | |
| Phase Configuration | 3‑Phase Input / Single‑Phase Output | |
| Input Voltage | 380 / 400 / 415 V AC | |
| Input Voltage Range | Approx. 304 – 477 V AC | |
| Input Frequency Range | 45 – 65 Hz | |
| Input Power Factor | ≥ 0.99 (at high load) | |
| Input THD | < 5 % typical | |
| Output Voltage | 220 / 230 / 240 V AC | |
| Output Frequency | 50 / 60 Hz (synchronized to mains) | |
| Output Voltage Regulation | ± 1 – 1.5 % typical | |
| Output THD | < 5 % (linear load) | |
| Load Crest Factor | 3 : 1 | |
| Overload Capability | 125 % for 10 min; 150 % for 1 min | |
| Battery Type | Internal VRLA sealed lead‑acid modular batteries | |
| Installed Batteries | 3 × 7 Ah modular battery strings | |
| Nominal Battery Voltage | Approx. 240 V DC (internal battery bus) | |
| Battery Runtime | Depends on installed battery configuration and load | |
| Battery Recharge Control | Automatic / programmable | |
| Bypass | Built‑in automatic & maintenance bypass | |
| Display / User Interface | Multifunction LCD status and control | |
| Communications / Management | USB, RS‑232; optional network management card | |
| Efficiency (Online Mode) | ~95 – 96 % typical | |
| Operating Temperature | 0 °C – 40 °C | |
| Humidity (Operating) | 0 – 95 % non‑condensing | |
| Altitude Rating | Up to ~1000 m without derating | |
| Protection Class | IP20 (indoor use) | |
| Dimensions (H × W × D) | Approx. 1400 × 380 × 907 mm | |
| Weight (Net) | Approx. 160 – 170 kg (varies with battery modules) | |
| Standards / Certifications | IEC 62040‑1/‑2/‑3; CE; RoHS; WEEE compliant | |
