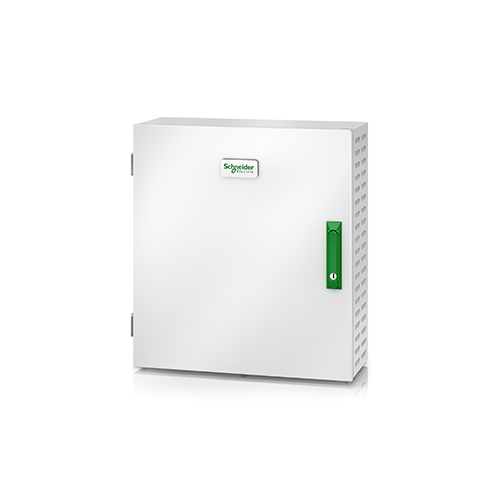

APC E3SOPT006 Parallel Maintenance Bypass Panel Up to 2 Units 10–40 kVA Easy UPS 3S & 3S Pro Price in Dubai UAE
APC E3SOPT006 Parallel Maintenance Bypass Panel Up to 2 Units 10–40 kVA Easy UPS 3S & 3S Pro Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Product Name | APC Parallel Maintenance Bypass Panel | |
| Model Number | E3SOPT006 | |
| Product Type | Parallel Maintenance Bypass Panel | |
| Compatible With | APC Easy UPS 3S and Easy UPS 3S Pro UPS systems | |
| Supported UPS Configuration | Up to 2 UPS units in parallel | |
| Supported UPS Ratings | 10 kVA – 40 kVA | |
| Purpose / Function | Allows isolation and maintenance of UPS units in a parallel configuration | |
| Maximum Input Short‑Circuit Withstand | 10 kA | |
| Installation Type | Wall‑mounted / external | |
| Form Factor | External bypass panel | |
| Colour | White / off‑white | |
| Dimensions (H × W × D) | 600 mm × 550 mm × 220 mm | |
| Net Weight | 30 kg | |
| Recommended Operating Temperature | 0 °C – 40 °C | |
| Operating Relative Humidity | 5 % – 95 % non‑condensing | |
| Operating Elevation | Up to ~3,000 m | |
| Protection Class | IP20 | |
| Recommended Cable Sizes | Based on UPS kVA per phase requirements | |
| Recommended Bolt Sizes | M6 / M8 (depending on cable lug size) | |
| Colour / Finish | Light finish (RAL 9003) | |
| Environmental | Indoor installation | |
