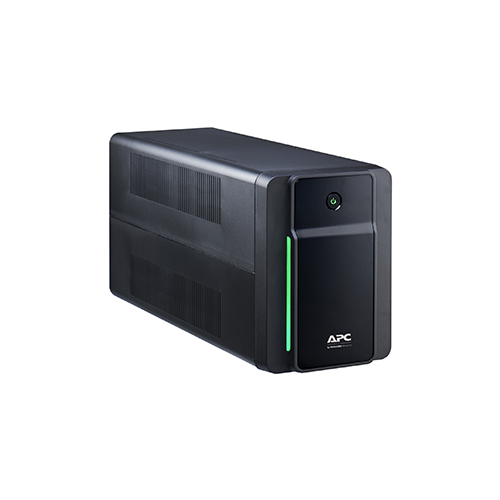

APC BX2200MI Back-UPS 2200VA UPS, 230V, Automatic Voltage Regulation (AVR), IEC Output Sockets Price in Dubai UAE
APC BX2200MI Back-UPS 2200VA UPS, 230V, Automatic Voltage Regulation (AVR), IEC Output Sockets Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Brand | APC | |
| Model | BX2200MI | |
| Product Series | Back-UPS | |
| UPS Capacity | 2200 VA / ~1320 W | |
| Nominal Input Voltage | 230 V AC | |
| Input Voltage Range | ~140 – 300 V AC | |
| Input Frequency | 50 / 60 Hz (Auto-sensing) | |
| Topology | Line-Interactive | |
| Automatic Voltage Regulation (AVR) | Yes | |
| Output Waveform | Stepped approximation to sine wave | |
| Transfer Time | ~6 ms (typical), ~10 ms (maximum) | |
| Output Frequency | 50 / 60 Hz ± 1 Hz | |
| Output Sockets | IEC 320 C13 (battery backup outlets) | |
| Input Connector | IEC 60320 C14 (UPS power inlet) | |
| Battery Type | Sealed Maintenance-Free Lead-Acid (VRLA) | |
| Battery Voltage | 24 V or 48 V (UPS internal battery configuration) | |
| Battery Capacity | ~9–12 Ah (approx.) | |
| Recharge Time | ~6 – 8 hours to 90 % | |
| Surge Protection | Yes | |
| LED Indicators | Yes (status & fault indicators) | |
| Audible Alarm | Yes (on battery / low battery / overload) | |
| Cold Start Support | Yes | |
| Operating Temperature | 0 °C – 40 °C | |
| Operating Humidity | 0 – 95 % non-condensing | |
| Form Factor | Tower | |
| Protection Class | IP20 | |
| Dimensions (H × W × D) | ~230 × 140 × 430 mm | |
| Net Weight | ~13–15 kg | |
| Color | Black | |
