Product Description
| Specification | Details |
|---|---|
| Brand | APC |

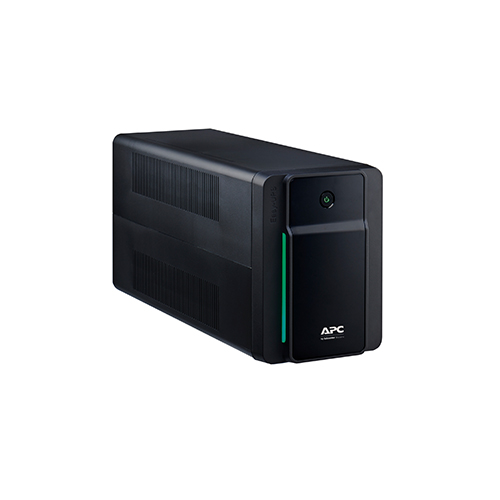

| Model | BVX1200LI‑MS |
| Product Series | Easy UPS |
| UPS Capacity | 1200 VA / ~650 W |
| Nominal Input Voltage | 230 V AC |
| Input Voltage Range | ~140 – 300 V AC |
| Input Frequency | 50 / 60 Hz (Auto‑sensing) |
| Topology | Line‑Interactive |
| Automatic Voltage Regulation (AVR) | Yes (Boost & Trim) |
| Output Waveform | Stepped Approximation to Sine Wave |
| Transfer Time | ~6 ms (typical), ~10 ms (maximum) |
| Output Frequency | 50 / 60 Hz ± 1 Hz |
| Output Sockets | Universal output sockets (multi‑region compatible) |
| Input Connector | IEC 60320 C14 |
| Battery Type | Sealed Maintenance‑Free Lead‑Acid (VRLA) |
| Battery Voltage | 12 V |
| Battery Capacity | ~9 Ah (approx.) |
| Recharge Time | ~6 – 8 hours |
| Surge Protection | Yes |
| LED Indicators | Yes |
| Audible Alarm | Yes |
| Cold Start Support | Yes |
| Operating Temperature | 0 °C – 40 °C |
| Operating Humidity | 0 – 95 % non‑condensing |
| Dimensions (H × W × D) | Approx. 190 × 140 × 390 mm |
| Weight | Approx. 7.5 kg |
| Color | Black |
| Mounting Type | Tower / Floor placement |
