Product Description
|
Specifications
|
||
|---|---|---|

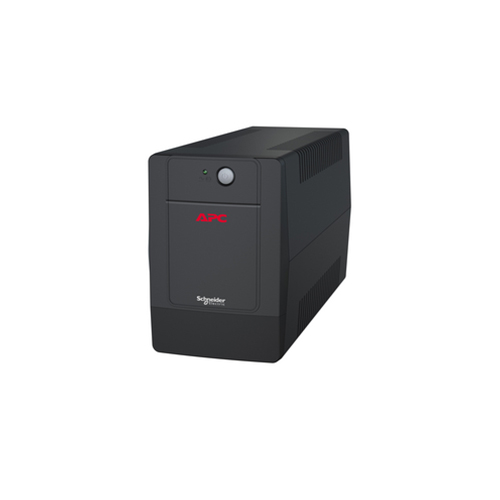

| Model | APC BVG1200I-MSX | |
| Product Line | Easy UPS BV/G Series | |
| UPS Type | Line-Interactive UPS | |
| Power Capacity | 1200 VA / approx. 650 W | |
| Nominal Input Voltage | 230 V AC | |
| Input Frequency | 50/60 Hz | |
| Input Voltage Range | ~170–280 V AC | |
| Nominal Output Voltage | 230 V AC | |
| Output Frequency | 50/60 Hz | |
| Waveform Type | Stepped approximation to sine wave | |
| Topology | Line-Interactive | |
| Outlets | Universal sockets (accepts various plug types) | |
| Surge Protection | Yes (built-in AC surge suppression) | |
| Automatic Voltage Regulation (AVR) | Yes (boost & trim voltage correction) | |
| Battery Type | Sealed lead-acid (VRLA), maintenance-free | |
| Battery Configuration | Typically 24V system suitable for 1200VA class | |
| Battery Recharge Time | ~6–8 hours (to near full after deep discharge) | |
| Typical Transfer Time | ~6–10 ms (from mains to battery) | |
| LED & Audible Indicators | Yes (status, battery mode, overload alerts) | |
| Resettable Circuit Breaker | Yes | |
| Generator Compatibility | Yes (auto-restart when mains returns) | |
| Dimensions (H × W × D) | Mid-tower UPS form factor | |
| Weight | ~7–9 kg (varies by battery size) | |
| Operating Temperature | 0–40 °C | |
| Operating Humidity | 0–90 % relative (non-condensing) | |
| Noise Level | ~< 45 dB typical | |
| Form Factor | Tower / Desktop | |
| Color | Black | |
| Typical Backup Time | Several minutes at light loads; decreases with heavier loads | |
| Warranty | ~2 years (unit & battery coverage in many regions) | |
