Product Description
|
Specifications
|
||
|---|---|---|

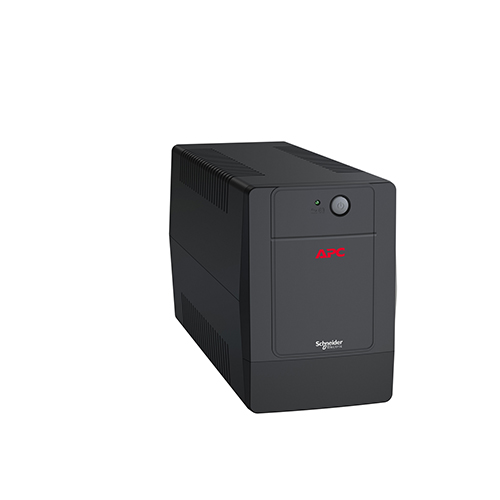

| Model | APC BVG1200I‑GR | |
| Product Line | Easy UPS BV/G Series | |
| UPS Type | Line‑Interactive UPS | |
| Power Capacity | ~1200 VA / ~650 W | |
| Nominal Input Voltage | 230 V AC | |
| Input Frequency | 50/60 Hz | |
| Input Voltage Range | Approx. 170–280 V AC | |
| Nominal Output Voltage | 230 V AC | |
| Output Frequency | 50/60 Hz | |
| Waveform Type | Stepped approximation to sine wave | |
| Topology | Line‑Interactive | |
| Outlets | Schuko (CEE 7/4) sockets (typically 4) | |
| Surge Protection | Yes (built‑in surge suppression) | |
| Automatic Voltage Regulation (AVR) | Yes (boost & trim) | |
| Battery Type | Sealed lead‑acid (VRLA), maintenance‑free | |
| Battery Configuration | 24 V battery system (typical for 1200 VA class) | |
| Battery Recharge Time | ~6–8 hours (typical) | |
| Transfer Time (Utility → Battery) | ~6–10 ms typical | |
| LED & Audible Indicators | Yes (power status, battery, overload) | |
| Resettable Circuit Breaker | Yes | |
| Generator Compatibility | Yes (auto‑restart on mains return) | |
| Dimensions (H × W × D) | Mid‑tower size (approx.) | |
| Weight | ~7–8 kg | |
| Operating Temperature | 0–40 °C | |
| Operating Humidity | 0–90 % relative (non‑condensing) | |
| Noise Level | ~< 45 dB | |
| Form Factor | Tower | |
| Color | Black | |
| Typical Backup Time | Several minutes at light loads; decreases with heavier loads | |
| Warranty | ~2 years (unit & battery coverage, varies by region) | |
