Product Description
|
Specifications
|
||
|---|---|---|

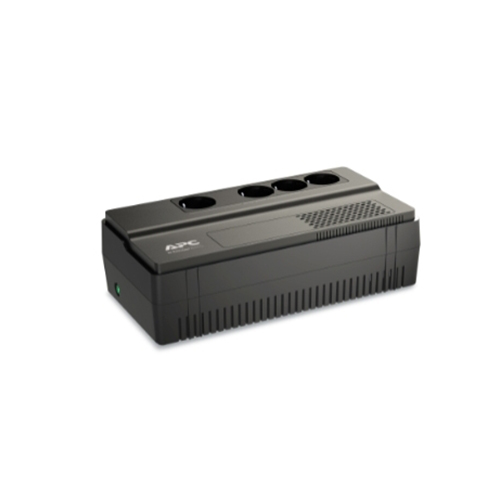

| Model | APC BV650I‑GR | |
| Product Line | Easy UPS BV Series | |
| UPS Type | Line‑Interactive UPS | |
| Power Capacity | 650 VA / ~375 W | |
| Nominal Input Voltage | 230 V AC | |
| Input Frequency | 50/60 Hz | |
| Input Voltage Range | ~170–280 V AC | |
| Nominal Output Voltage | 230 V AC | |
| Output Frequency | 50/60 Hz | |
| Waveform Type | Stepped approximation to sine wave | |
| Topology | Line‑Interactive | |
| Outlets | 1 × Schuko (CEE 7/4) | |
| Surge Protection | Yes (built‑in AC surge protection) | |
| Automatic Voltage Regulation (AVR) | Yes (boost & trim) | |
| Transfer Time (Utility → Battery) | ~6–10 ms typical | |
| Battery Type | Sealed lead‑acid (VRLA), maintenance‑free | |
| Battery Capacity | ~7 Ah (12 V) | |
| Expected Battery Life | ~3–5 years (varies with use) | |
| Battery Recharge Time | ~8 hours | |
| Indicators | LED & audible (power, battery status, overload) | |
| Cable Length | Standard length (~1.5–1.8 m) | |
| Operating Temperature | 0–40 °C | |
| Operating Humidity | 0–90 % relative (non‑condensing) | |
| Noise Level | ~40 dB typical | |
| Form Factor | Tower / Desktop | |
| Color | Black | |
| Typical Backup Time | Minutes depending on load (e.g., ~few minutes at full rated load) | |
