Product Description
|
Specifications
|
||
|---|---|---|

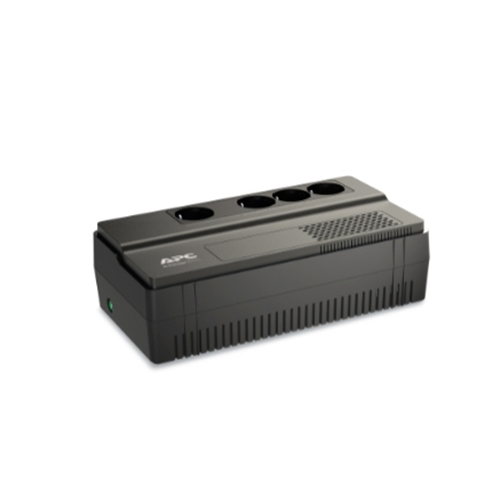

| Model | APC BV500I‑GR | |
| Product Line | Easy UPS BV Series | |
| UPS Type | Line‑Interactive UPS | |
| Power Capacity | 500 VA / 300 W | |
| Nominal Input Voltage | 230 V AC | |
| Input Frequency | 50/60 Hz | |
| Input Voltage Range | Approx. 170–280 V AC | |
| Nominal Output Voltage | 230 V AC | |
| Output Frequency | 50/60 Hz | |
| Waveform Type | Sine (stepped / approximate sine) | |
| Topology | Line‑Interactive | |
| Total Outlets | 1 × Schuko (Type F) | |
| Surge Protection | Yes (built‑in surge suppression) | |
| Automatic Voltage Regulation (AVR) | Yes (boost & trim) | |
| Surge Energy Rating | Moderate (protects against spikes/surges) | |
| Transfer Time (Utility → Battery) | ~6 ms typical | |
| Battery Type | Sealed lead‑acid (VRLA), maintenance‑free | |
| Expected Battery Life | ~3–5 years (varies with use) | |
| Battery Recharge Time | ~6–8 hours | |
| LED / Audible Indicators | Yes (power, battery status, overload) | |
| Cable Length | Standard UPS power cable (~1.5–1.8 m) | |
| Operating Temperature | 0–40 °C | |
| Operating Humidity | 0–90 % relative (non‑condensing) | |
| Noise Level | Typical UPS noise (~40 dB) | |
| Form Factor | Tower / Desktop | |
| Color | Black | |
