Product Description
|
Specifications
|
||
|---|---|---|
| Model | APC BR900G‑GR | |
| Product Line | Back‑UPS Pro (Power‑Saving) | |
| UPS Type | Line‑Interactive UPS | |
| Power Capacity | 900 VA / 540 W | |
| Nominal Input Voltage | 230 V AC | |
| Input Frequency | 50/60 Hz (auto‑sensing) | |
| Input Voltage Range | ~156–300 V AC (adjustable) | |
| Nominal Output Voltage | 230 V AC | |
| Output Frequency | 50/60 Hz | |
| Waveform Type | Stepped approximation to sine wave | |

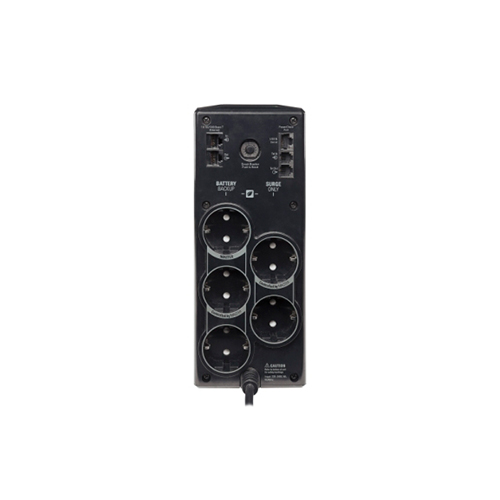

| Outlets (Total) | 5 × Schuko CEE 7 | |
| Battery Backup + Surge Outlets | 3 × Schuko CEE 7 | |
| Surge‑Only Outlets | 2 × Schuko CEE 7 | |
| Automatic Voltage Regulation (AVR) | Yes | |
| LCD Interface | Yes | |
| Battery Type | Sealed lead‑acid (VRLA) | |
| Typical Battery Recharge Time | ~8 hours | |
| Replacement Battery Cartridge | APCRBC123 | |
| Typical Transfer Time | ~8 ms (typical) / ~10 ms (max) | |
| Surge Energy Rating | ~613 J | |
| Communication Ports | USB and optional RS‑232 | |
| Data Line Protection | RJ‑11 / RJ‑45 (modem/DSL/Network) | |
| Typical Backup Time | ~16.3 min @ half load, ~4.6 min @ full load | |
| Cable Length | ~1.5–1.83 m | |
| Dimensions (H × W × D) | ~250 × 100 × 382 mm | |
| Weight | ~10.7 kg | |
| Operating Temperature | 0–40 °C | |
| Operating Humidity | 0–95 % non‑condensing | |
| Noise Level | ~45 dB | |
| Form Factor | Tower | |
| Color | Black | |
