Product Description
|
Specifications
|
||
|---|---|---|

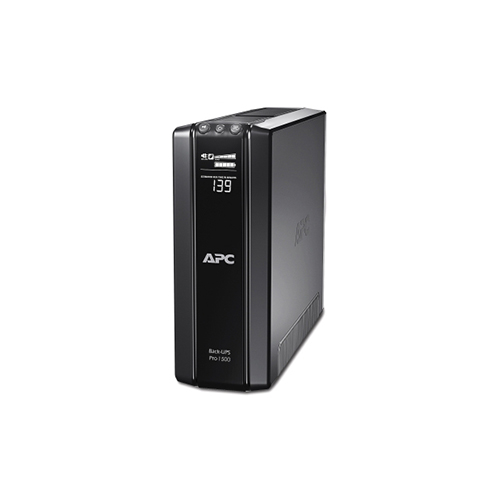

| Model | APC BR1500GI | |
| Product Line | Back-UPS Pro (Power-Saving) | |
| UPS Type | Line-Interactive UPS | |
| Power Capacity | 1500 VA / 865 W | |
| Nominal Input Voltage | 230 V AC | |
| Input Frequency | 50/60 Hz auto-sensing | |
| Input Voltage Range | ~156–300 V AC | |
| Nominal Output Voltage | 230 V AC | |
| Output Frequency | 50/60 Hz | |
| Waveform Type | Stepped approximation to sine wave | |
| Topology | Line-Interactive | |
| Total Outlets | 10 IEC outlets | |
| Battery Backup + Surge Outlets | 5 IEC C13 | |
| Surge-Only Outlets | 5 IEC C13 | |
| Automatic Voltage Regulation (AVR) | Yes | |
| LCD Interface | Yes (multifunction status display) | |
| Battery Type | Sealed lead-acid (VRLA), maintenance-free | |
| Nominal Battery Voltage | 24 V | |
| Battery Capacity | ~9 Ah | |
| Battery Recharge Time | ~8 hours | |
| Replacement Battery Cartridge | APCRBC124 | |
| Transfer Time (Utility → Battery) | ~10–12 ms | |
| Surge Energy Rating | ~441 J | |
| Data Line Protection | Phone (RJ‑11) and Network (RJ‑45) | |
| USB/Serial Ports | Yes (for UPS monitoring and management) | |
| Audible Alarms | Yes (battery mode, low battery, overload) | |
| Cold-Start Capable | Yes | |
| Hot-Swappable Battery | Yes | |
| Dimensions (H × W × D) | ~301 × 112 × 380 mm | |
| Weight | ~12.7 kg | |
| Operating Temperature | 0–40 °C | |
| Operating Humidity | 0–95 % non-condensing | |
| Noise Level | ~45 dB | |
| Form Factor | Tower | |
| Color | Black | |
| Certifications | CE, TÜV, GS, RoHS | |
| Warranty | Typically 2 years | |
