Product Description
|
Specifications
|
||
|---|---|---|

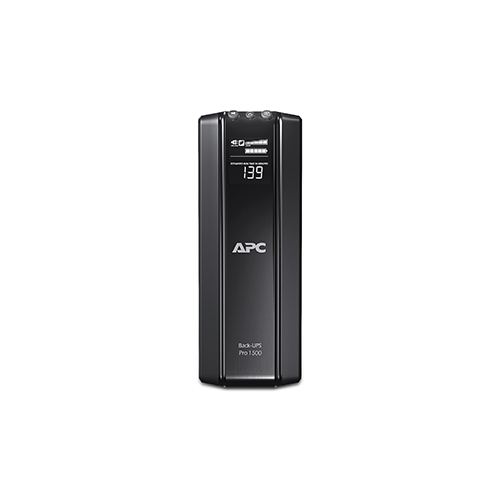

| Model | APC BR1500G‑FR | |
| Product Line | Power‑Saving Back‑UPS RS | |
| UPS Type | Line‑Interactive UPS | |
| Power Capacity | 1500 VA / 865 W | |
| Nominal Input Voltage | 230 V AC | |
| Input Frequency | 50/60 Hz | |
| Waveform Type | Stepped approximation to sine wave | |
| Nominal Output Voltage | 230 V AC | |
| Total Outlets | 6 × Schuko (CEE 7/5) | |
| Battery Backup Outlets | 3 (battery + surge) | |
| Surge‑Only Outlets | 3 (surge only) | |
| Automatic Voltage Regulation (AVR) | Yes (boost & trim) | |
| LCD Display | Yes (status and alerts) | |
| Battery Type | Sealed lead‑acid (VRLA), maintenance‑free | |
| Battery Recharge Time | ~8 hours | |
| Replacement Battery Cartridge | Included/replaceable | |
| USB Port | Yes (monitoring/communication) | |
| Data Line Protection | RJ‑11 (modem/fax) & RJ‑45 (network) | |
| Surge Energy Rating | Moderate (built‑in surge protection) | |
| Transfer Time (Utility → Battery) | ~10–12 ms | |
| Audible Alarms | Yes (battery, low battery, overload) | |
| Cable Length | Standard (~1.8 m) | |
| Dimensions (H × W × D) | Mid‑tower size | |
| Weight | ~11–12 kg | |
| Operating Temperature | 0–40 °C | |
| Operating Humidity | 0–95 % non‑condensing | |
| Form Factor | Tower | |
| Color | Black | |
| Typical Runtime | Several minutes at typical loads, varies with power draw | |
