Product Description
|
Specifications
|
||
|---|---|---|
| Model / Part Number | AP9872 | |

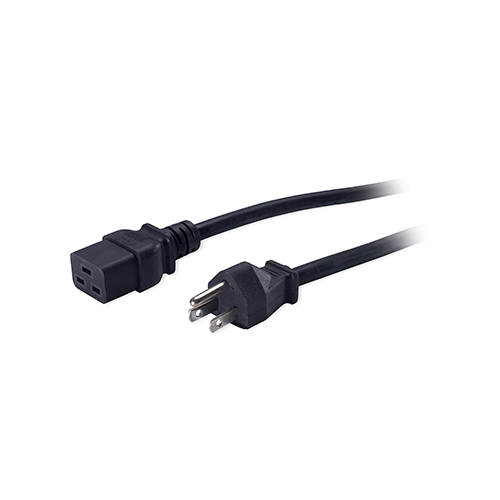

| Product Name | Power Cord (IEC C19 to NEMA 5‑15P) | |
| Cable Length | 2.5 m (≈ 8.2 ft) | |
| Connector (End 1 – Plug) | NEMA 5‑15P (straight blade) | |
| Connector (End 2 – Socket) | IEC 60320 C19 | |
| Rated Voltage | up to 125 VAC | |
| Rated Current | 10 A | |
| Frequency | 50 / 60 Hz | |
| Color | Black | |
| Conductor Size | Typically 16 AWG (or equivalent) | |
| Weight | ~0.5 kg (approximate) | |
| Operating Temperature Range | 0 °C – 60 °C | |
| Storage Temperature Range | –25 °C – 65 °C | |
| Operating Humidity | 0 – 95 % RH | |
| Operating Elevation | 0 – 3000 m | |
| Certifications / Standards | UL Listed, CSA certified | |
