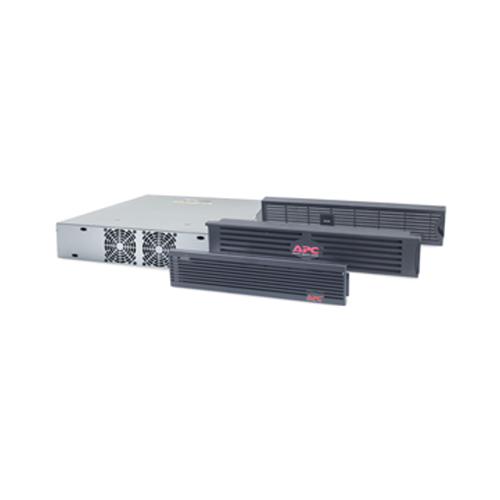

APC AP9628 Step-Down Transformer RM 2U 208V In / 120V Out with Hardwire Input/Output Price in Dubai UAE
APC AP9628 Step-Down Transformer RM 2U 208V In / 120V Out with Hardwire Input/Output Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model / Part Number | AP9628 | |
| Product Type | Step‑Down Transformer (Rack‑Mount) | |
| Rack Mount Height | 2U | |
| Nominal Input Voltage | 208 V AC | |
| Input Frequency | 60 Hz | |
| Input Connection | Hard‑wire 3‑wire (two hot phases + ground) | |
| Nominal Output Voltage | 120 V AC | |
| Output Connection | Hard‑wire 3‑wire (hot + neutral + ground) | |
| Load / Power Rating | ~5000 VA (5 kVA) | |
| Maximum Input Current | ~26 A | |
| Efficiency at Full Load | ~90 % | |
| Physical Height | ~3.5 in (~89 mm) | |
| Physical Width | ~17.5 in (~445 mm) | |
| Physical Depth | ~24.0 in (~610 mm) | |
| Net Weight | ~95 lb (~43 kg) | |
| Color | Black | |
| Operating Temperature Range | 0 °C to 40 °C | |
| Operating Humidity | 0 – 95 % non‑condensing | |
| Operating Elevation | 0 – 3048 m | |
| Storage Temperature Range | –25 °C to 65 °C | |
| Storage Humidity | 0 – 95 % | |
| Certifications & Standards | CSA, UL 1778, UL Listed | |
| Included Accessories | Rack mounting brackets, user manual | |
