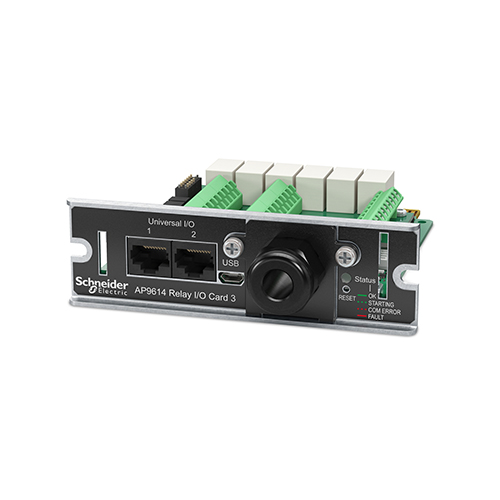

APC AP9614 Dry Contact I/O SmartSlot Card for UPS Price in Dubai UAE
APC AP9614 Dry Contact I/O SmartSlot Card for UPS Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Brand | APC | |
| Model | AP9614 | |
| Product Type | Dry Contact I/O SmartSlot Card | |
| Compatible UPS Interface | SmartSlot (for compatible APC UPS units) | |
| Function | Provides dry contact inputs/outputs for external device monitoring and control | |
| Output Relays | 6 configurable output relays | |
| Input Contacts | 4 input contact terminals | |
| Universal I/O Ports | 2 Universal I/O ports for optional sensors/accessories | |
| Rated Voltage | 24 V dry contact operation | |
| Line Rated Current | 0 – 200 mA | |
| Power Source | Powered via UPS SmartSlot (no external PSU required) | |
| Supported Monitoring | Web-based configuration and status monitoring | |
| Physical Dimensions (approx.) | 3.8 cm (H) × 12.1 cm (W) × 12.8 cm (D) | |
| Net Weight | ~0.20 kg | |
| Operating Temperature | 0 – 40 °C | |
| Operating Altitude | 0 – 10,000 ft | |
| Storage Temperature | –15 – 65 °C | |
| Form Factor | 0U SmartSlot plug-in card | |
| Included Accessories | USB cable for local configuration, user manual | |
| Mounting Mode | Plugs into UPS SmartSlot management slot | |
| Use Cases | External alarm panels, environmental sensors, automation interfaces, facility management alerts | |
