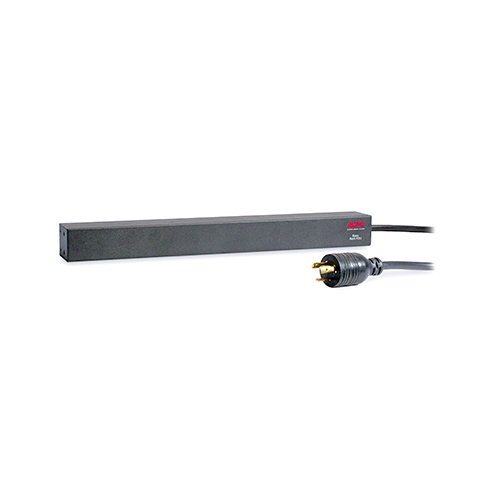

APC AP9566 Rack PDU Basic 1U 16A 208V (12) C13 Price in Dubai UAE
APC AP9566 Rack PDU Basic 1U 16A 208V (12) C13 Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model / Part Number | AP9566 | |
| Product Type | Rack PDU, Basic (Power Distribution Unit) | |
| Mounting | 1U rack‑mount (horizontal) | |
| Input Voltage | 208 V AC | |
| Input Frequency | 50 / 60 Hz | |
| Input Connection | NEMA L6‑20P (Twist‑Lock) | |
| Maximum Input Current | 20 A | |
| Regulatory Derated Input Current | 16 A | |
| Output Voltage | 208 V AC | |
| Output Connections | 12 × IEC 60320 C13 outlets | |
| Load Capacity | ~3328 VA | |
| Cord Length | ~12 ft / ~3.66 m | |
| Physical Dimensions (WxDxH) | ~17.6″ × 2.24″ × 1.73″ (~447 mm × 57 mm × 44 mm) | |
| Net Weight | ~5.5 lb (2.5 kg) | |
| Color | Black | |
| Operating Temperature | 0 °C to 45 °C | |
| Operating Humidity | 0 – 95 % RH | |
| Operating Elevation | 0 – 3048 m | |
| Storage Temperature | –25 °C to 65 °C | |
| Certifications & Approvals | cUL Listed, UL Listed, UL 60950, RoHS | |
| Included Accessories | Installation guide and rack mounting brackets | |
