Product Description
|
Specifications
|
||
|---|---|---|
| Brand | APC | |

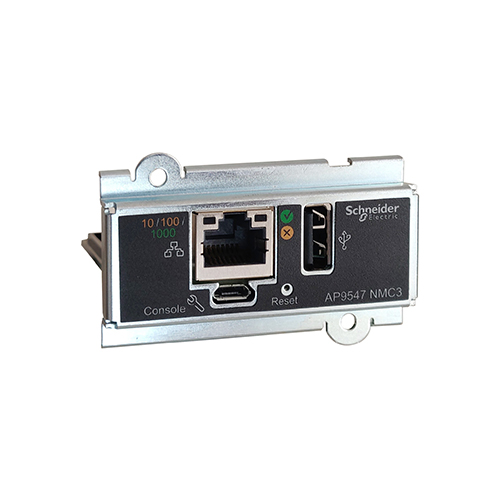

| Model | AP9547 | |
| Product Type | Network Management Card (NMC3) | |
| Intended Use | Remote monitoring and management of UPS (3‑Phase) | |
| Compatible UPS Series | Easy UPS 3S, Easy UPS 3M, Easy UPS 3L, Galaxy 3L, Galaxy PW 2nd Gen | |
| Network Interface | 1 × RJ‑45 (Gigabit Ethernet) | |
| Ethernet Speed | 10 / 100 / 1000 Mbps | |
| Protocol Support | HTTPS, SNMP (including SNMPv3), SSH, BACnet | |
| Security Features | Password protection, secure web access | |
| MIB Support | PowerNet MIB | |
| Management Features | Web‑based management, event logging, syslog | |
| Communication Ports | 1 × RJ‑45 Ethernet, 1 × Micro‑USB (console access) | |
| Monitoring Capabilities | Remote UPS monitoring, event notifications, data logging | |
| Network Shutdown Support | Supports coordinated shutdown for connected servers | |
| Physical Dimensions (approx.) | 52 mm × 44 mm × 80 mm | |
| Net Weight | ~50 g | |
| Operating Temperature | −5 °C to 45 °C | |
| Storage Temperature | −15 °C to 65 °C | |
| Operating Humidity | 0 – 95 % (non‑condensing) | |
| Certifications & Compliance | CISPR 32, EN 55024, EN 61000 series, FCC Class A, ICES‑003, VCCI, RoHS | |
| Included Items | Network management card, micro‑USB cable, installation manual | |
| Number of Phases | 3 | |
