Product Description
|
Specifications
|
||
|---|---|---|

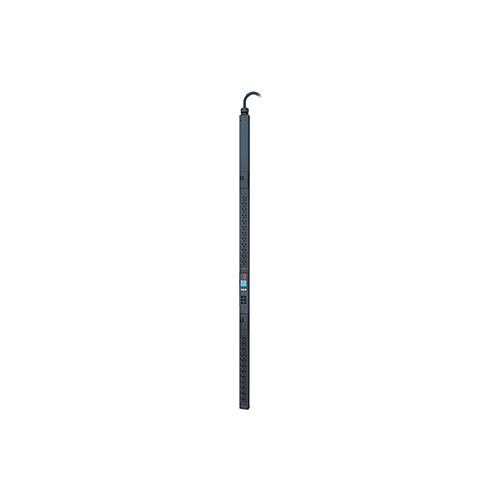

| Product Model | AP8832 | |
| Product Type | Rack PDU 2G – Metered | |
| Form Factor | ZeroU (Vertical mounting, no rack space used) | |
| Input Plug Type | NEMA L5-30P | |
| Input Voltage | 100–120 VAC | |
| Input Frequency | 50/60 Hz | |
| Maximum Input Current | 30A (24A continuous load) | |
| Load Capacity | 2.88 kVA (2880 VA) | |
| Output Receptacles | 24 × NEMA 5-20R | |
| Metering | Local digital current meter with LCD display | |
| Network Management | Remote monitoring via Web, SNMP, Telnet | |
| Cord Length | 3.0 m (9.8 ft) | |
| Mounting | Vertical rack mount (tool-less mounting compatible racks) | |
| Color | Black | |
| Operating Temperature | -5°C to 60°C | |
| Operating Humidity | 5–95% RH (non-condensing) | |
| Dimensions (H × W × D) | 1791 × 55 × 44 mm | |
| Net Weight | Approx. 6.7 kg | |
| Compliance | UL Listed, cUL, FCC Part 15 Class A, RoHS | |
