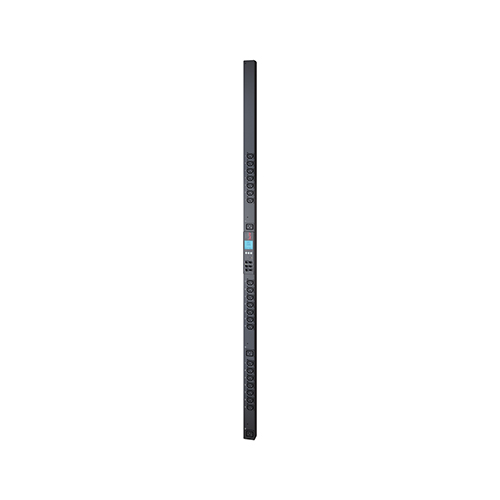

APC AP8659 Rack PDU 2G – Metered by Outlet with Switching, ZeroU, 16A 100-240V, (21) C13 & (3) C19 Outlets Price in Dubai UAE
APC AP8659 Rack PDU 2G – Metered by Outlet with Switching, ZeroU, 16A 100-240V, (21) C13 & (3) C19 Outlets Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model / Part Number | AP8659 | |
| Product Type | Rack PDU 2G – Metered‑by‑Outlet with Switching | |
| Form Factor | Zero‑U (0U) Vertical Rack Mount | |
| Input Voltage | 100‑240 V AC (Nominal) | |
| Input Frequency | 50 / 60 Hz | |
| Input Connection | IEC 60320 C20 (or regional equivalent) | |
| Maximum Input Current | 16 A | |
| Load Capacity | ~3,680 VA (16 A × 230 V) | |
| Output Voltage | 100‑240 V AC | |
| Outlets (Total) | 24 | |
| IEC C13 Outlets | 21 × IEC 60320 C13 | |
| IEC C19 Outlets | 3 × IEC 60320 C19 | |
| Metering | Per‑outlet power metering (Amps / Volts / kW / kWh) | |
| Switching | Individual outlet control with sequencing | |
| Management Interfaces | Web, SNMP, Telnet; centralized software support | |
| Cord/Cable Length | Typically ~3 m (depends on configuration) | |
| Physical Dimensions (H×W×D) | ~1829 × 56 × 51 mm (standard Zero‑U size) | |
| Weight | ~6.0 – 7.0 kg (approx.) | |
| Color | Black | |
| Mounting Orientation | Vertical rack side mount | |
| Operating Temperature | −5 °C to 60 °C (23 °F to 140 °F) | |
| Operating Humidity | 5 % – 95 % RH (non‑condensing) | |
| Operating Altitude | Up to ~3,048 m (10,000 ft) | |
| Storage Temperature | −25 °C to 65 °C | |
| Certifications / Compliance | UL / cUL, EN 55022/24, EN 61000‑3‑2/3, FCC Class A, ICES‑003, VCCI, RoHS | |
| Included Accessories | CAN port terminator, installation guide, rack mount brackets, safety guide, configuration cable | |
