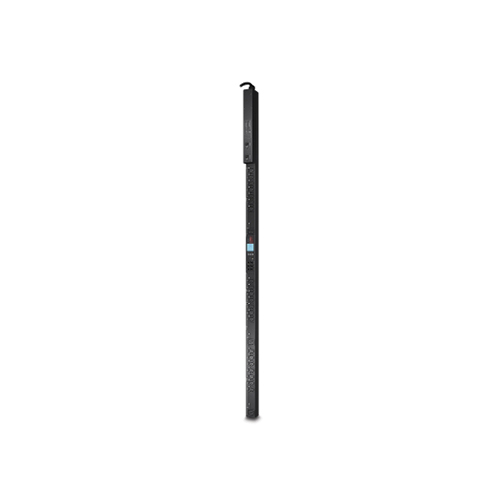

APC AP8641 Rack PDU 2G Metered-by-Outlet with Switching ZeroU 30A 200/208V 21xC13 3xC19 Price in Dubai UAE
APC AP8641 Rack PDU 2G Metered-by-Outlet with Switching ZeroU 30A 200/208V 21xC13 3xC19 Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model / Part Number | AP8641 | |
| Product Type | Rack PDU 2G, Metered-by-Outlet with Switching | |
| Form Factor | 0U Vertical Rack Mount | |
| Input Voltage | 200 V / 208 V / 230 V AC | |
| Input Frequency | 50 / 60 Hz | |
| Input Connection | NEMA L6-30P Plug | |
| Acceptable Input Voltage Range | 200 – 240 VAC | |
| Maximum Input Current | 30 A | |
| Load Capacity | ~4992 VA | |
| Output Voltage | 200 V / 208 V | |
| Outlets (Total) | 24 | |
| IEC C13 Outlets | 21 × IEC 60320 C13 | |
| IEC C19 Outlets | 3 × IEC 60320 C19 | |
| Metering | Per-outlet metering (Amps / Volts / kW / kWh) | |
| Switching | Individual outlet control (power on/off & sequencing) | |
| Management Interfaces | Web, SNMP, Telnet; supports centralized management platforms | |
| Cord Length | ~3 m (9.84 ft) | |
| Physical Dimensions (H×W×D) | ~1829 × 56 × 51 mm | |
| Weight | ~8.23 kg (~18.14 lb) | |
| Color | Black | |
| Mounting Orientation | Vertical rack side mount | |
| Operating Temperature | −5 °C to 60 °C (23 °F to 140 °F) | |
| Operating Humidity | 5 % – 95 % RH | |
| Operating Altitude | 0 – 3,048 m (0 – 10,000 ft) | |
| Storage Temperature | −25 °C to 65 °C | |
| Certifications / Compliance | UL, cUL, FCC Part 15 Class A, ICES-003, VCCI Class A | |
| Included Accessories | CAN port terminator, installation guide, rack mounting brackets, safety guide, serial configuration cable | |
