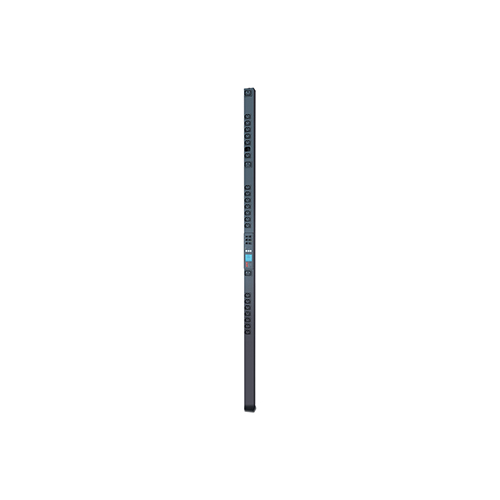

APC AP8459NA3 Rack PDU 2G Metered-by-Outlet ZeroU 20A 208V 21xC13 3xC19 Price in Dubai UAE
APC AP8459NA3 Rack PDU 2G Metered-by-Outlet ZeroU 20A 208V 21xC13 3xC19 Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model / Part Number | AP8459NA3 | |
| Product Type | Rack PDU, Metered-by-Outlet (Zero-U) | |
| Form Factor | 0U / Zero-U (mounts alongside rack rails) | |
| Input Power | 20 A, 208 V AC (nominal) | |
| Acceptable Input Voltage Range | 100-240 VAC (supports 200, 208, 230 VAC) | |
| Input Frequency | 50 / 60 Hz | |
| Input Connection | NEMA L6-20P (single branch whip) | |
| Output Voltage | 208 V AC | |
| Load Capacity | 3300 VA | |
| Maximum Input Current | 20 A (North America derated 16 A) | |
| Outlets (Total) | 24 | |
| IEC C13 Outlets | 21 × IEC 60320 C13 | |
| IEC C19 Outlets | 3 × IEC 60320 C19 | |
| Metering | Per-outlet metering (amps/volts/kW/kWh) | |
| Management Interfaces | Web, SNMP, Telnet | |
| Cord Length | ~3 m (9.8–10 ft) | |
| Physical Dimensions (H×W×D) | 72.01″ × 2.20″ × 2.01″ (~1829 × 56 × 51 mm) | |
| Weight | ~14.9 lb / 6.8 kg | |
| Color | Black | |
| Mounting Orientation | Vertical rack mounting (side) | |
| Operating Temperature | -5 °C to 60 °C (23 °F to 140 °F) | |
| Operating Humidity | 5 % – 95 % RH | |
| Operating Altitude | 0 – 10,000 ft (0 – 3,048 m) | |
| Storage Temperature | -25 °C to 65 °C | |
| Certifications / Compliance | UL Listed, EN 55022/24, EN 61000-3-2/3, FCC Part 15 Class A, ICES-003, VCCI Class A, VDE | |
| Included Accessories | CAN port terminator, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable | |
