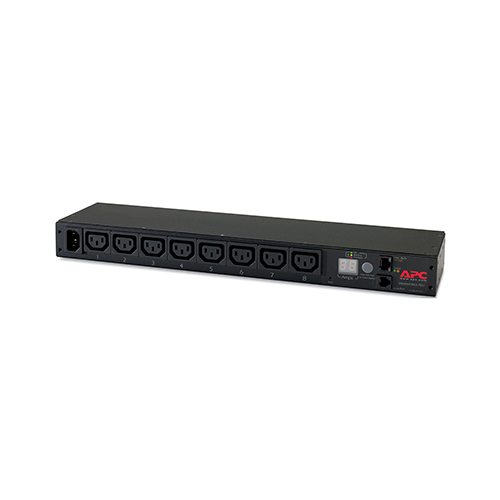

APC AP7820B Metered Rack PDU, 1U – 12A/208V, 10A/230V, (8) C13 Outlets Price in Dubai UAE
APC AP7820B Metered Rack PDU, 1U – 12A/208V, 10A/230V, (8) C13 Outlets Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model / Part Number | APC AP7820B | |
| Product Type | Metered Rack Power Distribution Unit (PDU) | |
| Form Factor | 1U Rack‑mount (horizontal) | |
| PDU Type | Metered (local current monitoring) | |
| Nominal Input Voltage | 200 / 208 / 230 V AC | |
| Nominal Output Voltage | 208 / 230 V AC | |
| Maximum Input Current | 12 A @ 208 V / 10 A @ 230 V | |
| Input Frequency | 50 / 60 Hz | |
| Input Connection | IEC 60320 C14 plug (power cord) | |
| Output Outlets | 8 × IEC 60320 C13 | |
| Rated Load Capacity | ~2.3 kVA | |
| Monitoring | Local digital current display (amps) | |
| LED Indicators | Yes | |
| Mounting Orientation | Horizontal 1U rack installation | |
| Mounting Hardware | Rack mounting brackets + cord retention bracket | |
| Power Cord Length | ~6.5 ft (≈2 m) | |
| Dimensions (HxWxD) | ~1.73″ × 17.48″ × 4.02″ (≈44 × 444 × 102 mm) | |
| Rack Height | 1U | |
| Net Weight | ~1.7 kg | |
| Operating Temperature | –5 °C to 45 °C | |
| Operating Humidity | 5 % – 95 % non‑condensing | |
| Certifications / Compliance | cUL Listed, CE, CSA, FCC, VDE, RoHS | |
