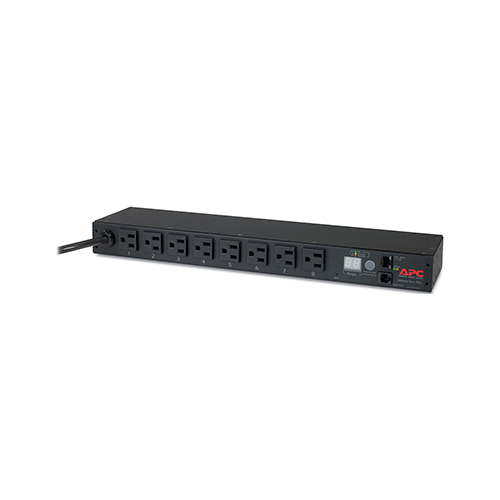

APC AP7800B Metered Rack PDU, 1U, 15A – 100/120V, (8) 5-15 Outlets Price in Dubai UAE
APC AP7800B Metered Rack PDU, 1U, 15A – 100/120V, (8) 5-15 Outlets Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model / Part Number | APC AP7800B | |
| Product Type | Metered Rack Power Distribution Unit (PDU) | |
| Form Factor | 1U Rack‑mount (horizontal) | |
| Rated Power Capacity | ~1.44 kW (1440 VA) | |
| PDU Type | Metered (local current display) | |
| Nominal Input Voltage | 100 – 120 V AC | |
| Nominal Output Voltage | 120 V AC | |
| Input Connection | NEMA 5‑15P plug | |
| Maximum Input Current | 15 A | |
| Regulatory Derated Current | ~12 A | |
| Input Frequency | 50 / 60 Hz | |
| Output Outlets | 8 × NEMA 5‑15R | |
| Metering | Current metering (local/strip) | |
| Monitoring / Display | Local current display on unit | |
| Mounting Orientation | Horizontal rack‑mount (front or rear) | |
| Included Hardware | Rack mounting brackets & cord retention brackets | |
| Power Cord Length | ~12 ft (3.65 m) | |
| Colour | Black | |
| Dimensions (H × W × D) | ~1.73″ × 17.48″ × 4.02″ (~44 × 444 × 102 mm) | |
| Net Weight | ~1.73 kg | |
| Operating Temperature | –5 °C – 45 °C | |
| Operating Relative Humidity | 5 % – 95 % non‑condensing | |
| Operating Altitude | Up to ~3000 m | |
| Certifications / Compliance | UL, cUL, CSA, METI Denan, FCC Class A, ICES‑003, VCCI, RoHS | |
