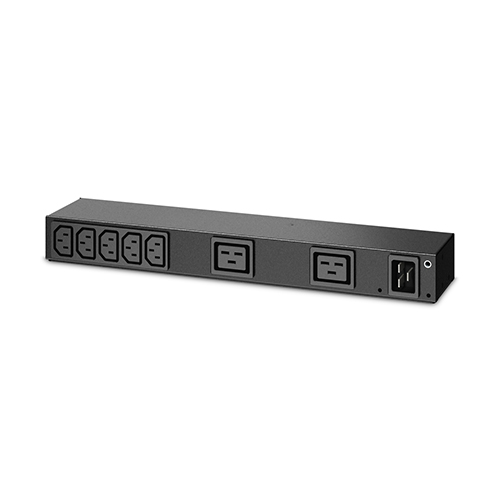

APC AP6120A Rack PDU Basic 0U/1U 100-240V/20A, 220-240V/16A – 7x C13, 2x C19 Price in Dubai UAE
APC AP6120A Rack PDU Basic 0U/1U 100-240V/20A, 220-240V/16A – 7x C13, 2x C19 Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Brand | APC by Schneider Electric | |
| Model / Part Number | AP6120A | |
| Product Type | Rack Power Distribution Unit (PDU) | |
| Series | Basic Rack PDU | |
| Form Factor / Mounting | 0U/1U (vertical or horizontal rack mounting) | |
| Rated Input Voltage Range | 100–240 V AC | |
| Nominal Input Voltage | 230 V AC | |
| Input Frequency | 50/60 Hz | |
| Rated Input Current | 20 A | |
| Derated Current (220–240 V regions) | 16 A | |
| Input Connector | IEC 60320 C20 inlet | |
| Output Connections (Outlets) | 7 × IEC 60320 C13 outlets2 × IEC 60320 C19 outlets | |
| Total Number of Outlets | 9 | |
| Maximum Load Capacity | ~3.3 kVA | |
| Net Weight | Approx. 1.6 kg | |
| Shipping Weight | Approx. 2.0 kg | |
| Physical Dimensions (H × W × D) | Approx. 388 mm × 44 mm × 93 mm | |
| Color / Finish | Black | |
| Operating Temperature Range | 0 – 50 °C | |
| Storage Temperature Range | –15 – 60 °C | |
| Operating Humidity | 5 % – 95 % non‑condensing | |
| Operating Altitude | Up to ~3048 m | |
| Certifications / Compliance | CE, UL/cUL, EAC, RoHS | |
