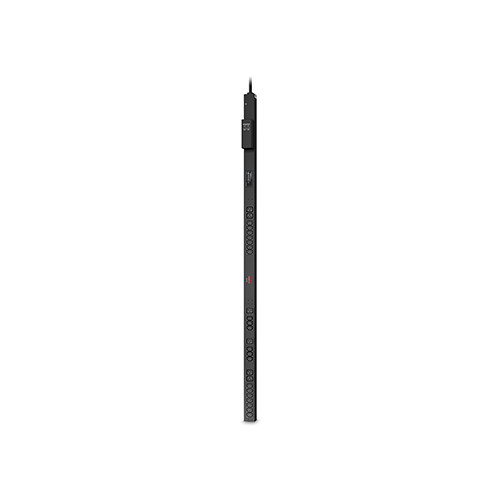

APC AP6009A Rack PDU Basic Vertical 220-240V 32A – 20x C13, 6x C19 Price in Dubai UAE
APC AP6009A Rack PDU Basic Vertical 220-240V 32A – 20x C13, 6x C19 Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Brand | APC by Schneider Electric | |
| Model / Part Number | AP6009A | |
| Product Type | Rack Power Distribution Unit (PDU) | |
| Series / Category | Basic / NetShelter Basic | |
| Mounting Form Factor | Vertical (0U Zero‑U) | |
| Rated Input Voltage | 220–240 V AC | |
| Nominal Input Voltage | 230 V AC | |
| Input Frequency | 50/60 Hz | |
| Rated Input Current | 32 A | |
| Maximum Load Capacity | ~7.4 kVA | |
| Input Connection | IEC 60309 32 A 2P + E (IEC309 style) | |
| Power Cord Length | ~3.05 m | |
| Number of Outlets (Total) | 26 | |
| Outlet Types | 20 × IEC 60320 C13 outlets6 × IEC 60320 C19 outlets | |
| Overload Protection | Yes | |
| Net Weight | Approx. 6.18 kg | |
| Shipping Weight | Approx. 8.0 kg | |
| Dimensions (H × W × D) | 1626 mm × 56 mm × 43 mm | |
| Shipping Dimensions (H × W × D) | ~1875 mm × 226 mm × 135 mm | |
| Operating Temperature | 0 °C – 50 °C | |
| Storage Temperature | –15 °C – 65 °C | |
| Operating Humidity | 5 % – 95 % non‑condensing | |
| Operating Elevation | 0 – 3048 m | |
| Certifications / Compliance | CE, EAC, IRAM, VDE, RoHS compliant | |
