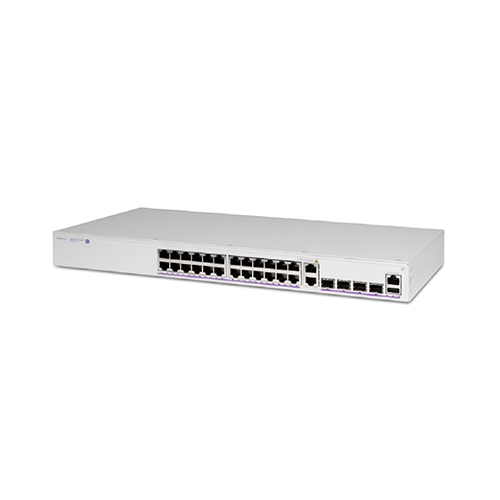

Alcatel OS6360-PH24 Lucent Enterprise OmniSwitch 24-Port PoE 1G Ethernet Switch Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model | OS6360-PH24 | |
| Brand | Alcatel-Lucent Enterprise | |
| Product Series | OmniSwitch 6360 Series | |
| Form Factor | Rack-mountable (1U) | |
| Ports (Data + PoE) | 24 × 10/100/1000Base-T RJ-45 ports with PoE+ | |
| Uplink Ports | 2 × SFP 1G uplinks + 2 × SFP+ 10G uplinks (license-upgradable) | |
| PoE Standard | IEEE 802.3af (PoE) and 802.3at (PoE+) | |
| PoE Power Budget | Up to 380W | |
| Switching Capacity | 92 Gbps | |
| Forwarding Rate | 68.5 Mpps | |
| MAC Address Table | 16,000 entries | |
| VLAN Support | Up to 4,000 VLANs | |
| Layer Support | Layer 2 switching with static Layer 3 routing (IPv4/IPv6) | |
| Stacking Capability | Virtual chassis (stack up to 4 switches) | |
| Quality of Service (QoS) | 802.1p, DiffServ, ACLs, Rate Limiting, WRR, SPQ | |
| Security Features | 802.1X, MAC authentication, RADIUS, TACACS+, DHCP snooping, Port Security | |
| Management Options | Web GUI, CLI, SNMPv1/v2/v3, SSH, Telnet, REST API, OmniVista support | |
| Cooling | Single fan | |
| Power Supply | Internal, fixed | |
| Power Consumption | ~46W (without PoE), up to 446W (with full PoE load) | |
| Dimensions (W x D x H) | 440 mm × 300 mm × 44 mm | |
| Weight | ~3.9 kg | |
| Operating Temperature | 0°C to 45°C | |
| Storage Temperature | -40°C to 85°C | |
| Certifications | CE, FCC, UL, RoHS compliant | |
| Ideal For | SMBs, campus networks, IP telephony, wireless APs, IoT deployments | |
