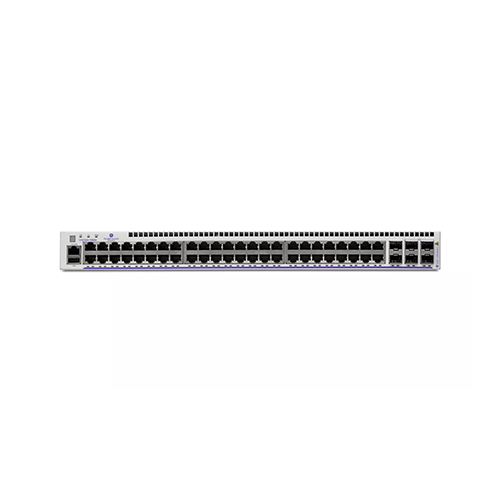

Alcatel-Lucent OS6560-P48X4 48-Port PoE Gigabit Switch Price in Dubai UAE
Alcatel-Lucent OS6560-P48X4 48-Port PoE Gigabit Switch Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model | OS6560-P48X4 | |
| Brand / Series | Alcatel-Lucent Enterprise / OmniSwitch 6560 Series | |
| Form Factor | 1U Rack-mountable | |
| Access Ports | 48 × 10/100/1000Base-T RJ-45 (PoE+) | |
| Uplink Ports | 2 × 1G SFP + 4 × 1G/10G SFP+ | |
| PoE Standards | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (HPoE) | |
| PoE Power Budget | Up to 920W total | |
| Switching Capacity | 216 Gbps | |
| Forwarding Rate | 160.5 Mpps | |
| MAC Address Table | 16,000 entries | |
| VLAN Support | Up to 4,000 VLANs | |
| Routing Capabilities | Layer 2 and Layer 3 static routing, RIP, OSPF, VRRP, IGMP, MLD | |
| Stacking Capability | Virtual chassis stacking (up to 8 units), 320 Gbps total stack bandwidth | |
| Quality of Service (QoS) | 8 queues per port, SPQ, WRR, ACLs, rate limiting, sFlow | |
| Security Features | 802.1X, MAC authentication, RADIUS, TACACS+, DHCP snooping, DoS protection | |
| Management Interfaces | CLI, Web GUI, SNMP v1/v2/v3, SSH, Telnet, REST API, JSON-RPC, OmniVista support | |
| CPU / Memory | 800 MHz ARM CPU, 2 GB RAM, 1–2 GB Flash (depending on model) | |
| Cooling System | Dual internal fans | |
| Noise Level | 45–54 dB(A) | |
| Power Supply | Internal AC power supply, hot-swappable, supports redundancy | |
| Power Consumption | ~104W (idle), up to ~920W with full PoE load | |
| Heat Dissipation | ~3,139 BTU/h | |
| Dimensions (W × D × H) | 440 mm × 350 mm × 44 mm | |
| Weight | Approximately 4.7 kg | |
| Operating Temperature | 0°C to 45°C | |
| Storage Temperature | –40°C to 85°C | |
| Operating Humidity | 5% to 95% non-condensing | |
| Certifications | CE, FCC, UL, RoHS, IEEE standards compliant | |
| Use Case | Enterprise edge, high-density PoE deployment, IP telephony, surveillance, IoT | |
