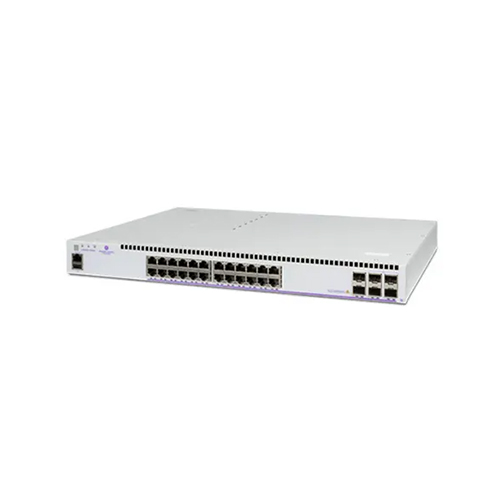

Alcatel-Lucent OS6560-P24X4 24-Port PoE Gigabit Switch Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model | OS6560‑P24X4 | |
| Brand / Series | Alcatel‑Lucent Enterprise OmniSwitch 6560 | |
| Form Factor | 1U rack-mountable | |
| Access Ports | 24 × 10/100/1000Base‑T PoE+ RJ‑45 ports | |
| SFP Uplink Ports | 2 × 1 Gb SFP+ fixed | |
| SFP+ Uplink / Stacking | 4 × 1/10 Gb SFP+ ports | |
| PoE Standards | IEEE 802.3af (PoE), 802.3at (PoE+), 802.3bt (HPoE) | |
| PoE Power Budget | 600 W total | |
| Switching ASIC Capacity | 168 Gbps | |
| Forwarding Rate | 125 Mpps | |
| MAC Address Table | 16,000 entries | |
| VLAN Support | Up to 4,000 VLANs | |
| Routing Support | Static IPv4/IPv6, RIP, OSPFv2, IGMP, MLD, BFD | |
| Stacking Capability | Virtual chassis stacking up to 8 units (40 Gbps per switch, 320 Gbps total) | |
| QoS & ACL | 8 hardware queues, ACL entries (2,000), CoS, SPQ, WRR | |
| Security Features | 802.1X, MAC auth, RADIUS, TACACS+, DHCP snooping, DoS prevention, port security | |
| Management Interfaces | Web GUI, CLI, SNMP v1/2/3, SSH, Telnet, RESTful API, JSON-RPC, OmniVista support | |
| CPU / Memory | 800 MHz ARM CPU, 1 GB RAM, 1 GB flash | |
| Cooling / Fans | Internal fans (2 fans depending on variant), noise 45–54 dB(A) | |
| Power Supply | Internal, modular AC (hot-swappable redundancy supported) | |
| Power Consumption | ~42 W idle, ~600 W with full PoE load | |
| Heat Dissipation | ~2,047 BTU/h | |
| Operating Temperature | 0–45 °C | |
| Storage Temperature | −40–85 °C | |
| Humidity (Operating) | 5–95% non-condensing | |
| Dimensions (W×D×H) | 440 × 350 × 44 mm | |
| Weight | ~4.7–4.9 kg | |
| Certifications | CE, FCC, UL, RoHS and full IEEE standard compliance | |
| Ideal Use Cases | Campus access, enterprise edge, IP telephony, multimedia & PoE device PoE needs | |
