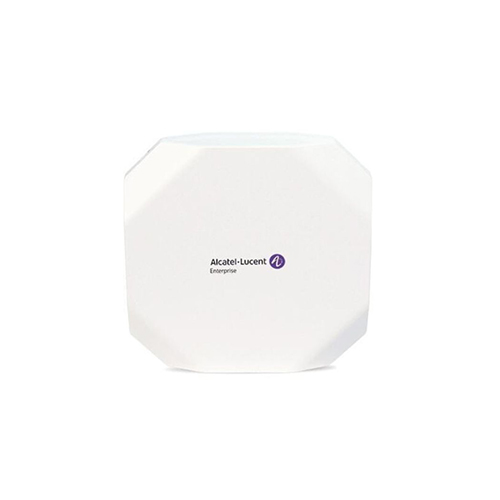

Alcatel-Lucent OAW-AP1301-RW OmniAccess Stellar Indoor Access Point Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model | OAW-AP1301-RW | |
| Series | OmniAccess Stellar | |
| Deployment Type | Indoor Access Point | |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) | |
| Radios | Dual-radio 2×2:2 MU-MIMO (2.4 GHz & 5 GHz) | |
| Max Data Rate | Up to 1.2 Gbps (5 GHz) + 573 Mbps (2.4 GHz); ~1.77 Gbps total | |
| Ethernet Ports | 2 × 10/100/1000 Mbps RJ-45 ports | |
| PoE Support | IEEE 802.3af (PoE) | |
| DC Power Input | 48 V DC (optional, DC takes precedence over PoE) | |
| Antenna Type | Internal omni-directional antennas | |
| Antenna Gain | 3.3 dBi (2.4 GHz & 5 GHz) | |
| Bluetooth/Zigbee | Not available on RW model (available on AP1301-H variant) | |
| USB Port | 1 × USB-C (5 V, 500 mA max) | |
| Console Port | 1 × Serial RS-232 console port | |
| Security Features | WPA2/WPA3, 802.1X, MAC filtering, WIPS/WIDS, ACLs, captive portal | |
| Client Capacity | Up to 512 concurrent users; 16 SSIDs (8 per radio) | |
| Key Features | OFDMA, MU-MIMO, TWT, BSS Coloring, DFS, Layer 2/3 roaming, Beamforming | |
| QoS & Traffic Mgmt | WMM/WME, rate limiting, VLAN tagging, DHCP snooping | |
| Management Options | OmniVista Cirrus (cloud), OmniVista 2500 (on-prem), standalone clustering | |
| Mounting Options | Ceiling, wall mount (mount kit included) | |
| Dimensions (W × D × H) | 180 × 180 × 36 mm | |
| Weight | 574 g (1.26 lb) | |
| Operating Temperature | 0°C to 45°C | |
| Storage Temperature | –40°C to 70°C | |
| Humidity | 5% to 95% non-condensing | |
| Power Consumption | Max 13.1 W (PoE) | |
| Certifications | CE, FCC, UL, RoHS, WEEE, REACH | |
| Ideal Use Cases | Small to mid-size enterprise environments, schools, retail, offices | |
