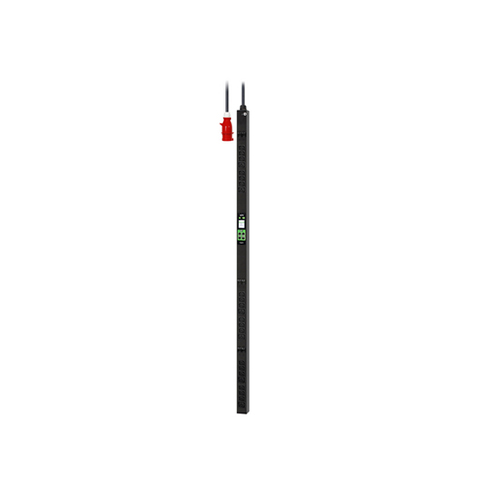

APC EPDU2232M EasyPDU Metered 0U 22kW 230V – 18x C13, 6x C19, IEC309 Price in Dubai UAE
APC EPDU2232M EasyPDU Metered 0U 22kW 230V – 18x C13, 6x C19, IEC309 Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model | EPDU2232M | |
| Product Series | EasyPDU | |
| PDU Type | Metered (input‑level power monitoring) | |
| Mounting Type | 0U Vertical (Zero U rack mount) | |
| Input Voltage | 230 V AC | |
| Maximum Power Capacity | 22 kW | |
| Input Current | 32 A | |
| Input Frequency | 50/60 Hz | |
| Phase | Three‑phase (230 V between phases) | |
| Input Connector | IEC 60309 32 A (3P+N+PE) | |
| Total Outlets | 24 | |
| Outlet Configuration | 18 × IEC C136 × IEC C19 | |
| Metering | Yes (input load monitoring) | |
| Network Management | Yes (Ethernet / SNMP / Web support) | |
| Display | Local digital display for input load | |
| Form Factor | Zero U (does not occupy rack U space) | |
| Color | Black | |
| Operating Temperature | 0 °C to 45 °C | |
| Operating Humidity | 5 % – 95 % non‑condensing | |
| Operating Altitude | Up to ~3000 m | |
| Certifications | CE, UKCA, RoHS compliant | |
| Typical Applications | Data centers, enterprise racks requiring monitored power distribution | |
