Product Description
|
Specifications
|
||
|---|---|---|
| Model | EPDU1216M | |

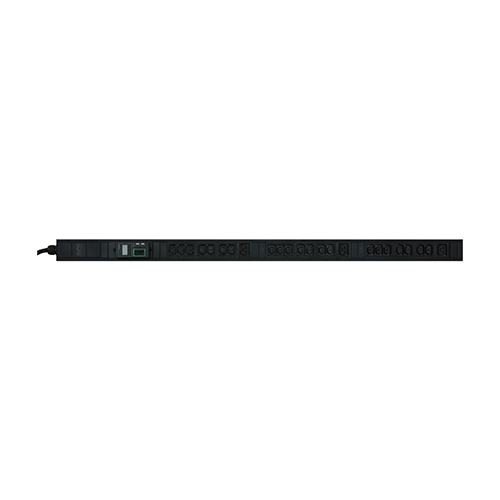

| Product Type | EasyPDU – Metered Rack Power Distribution Unit | |
| Mounting | Vertical, ZeroU (does not consume rack unit space) | |
| Phase | Single‑phase | |
| Nominal Input Voltage | 230 V AC | |
| Input Frequency | 50 – 60 Hz | |
| Input Connection | IEC 309 inlet (16 A, 230 V) | |
| Maximum Current | 16 A | |
| Maximum Power Capacity | 11 kW (11,000 VA) | |
| Total Outlets | 24 | |
| Outlet Configuration | 21 × IEC 60320 C13 + 3 × IEC 60320 C19 | |
| Metering | Aggregate metering (voltage, current, power, energy) | |
| Outlet Control | None (non‑switched) | |
| Display | Integrated metering display (local) | |
| Cable Length | Approx. 2.5 m | |
| Form Factor | Vertical 0U | |
| Housing Material | Metal | |
| Color | Black | |
| Operating Temperature | -5 °C to 45 °C | |
| Operating Humidity | 5 – 95 % RH | |
| Net Weight | Approx. 2.4 kg | |
| Certifications | CE, RoHS | |
