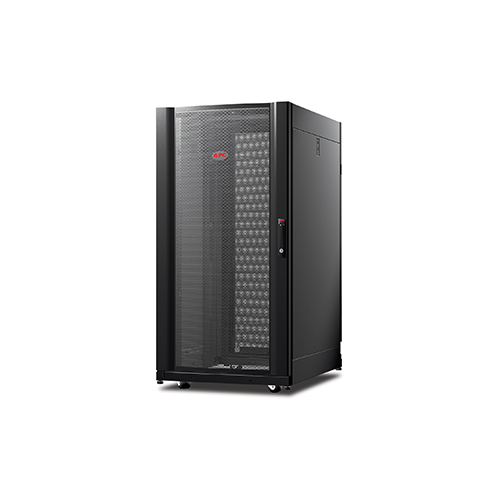

APC AR3814 NetShelter AV 24U Rack Enclosure – 600mm W x 825mm D – Side Panels Included – 10-32 Threaded Rails – Black Price in Dubai UAE
APC AR3814 NetShelter AV 24U Rack Enclosure – 600mm W x 825mm D – Side Panels Included – 10-32 Threaded Rails – Black Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Manufacturer | APC by Schneider Electric | |
| Product Line | NetShelter AV | |
| Model / Part Number | AR3814 | |
| Rack Height | 24U | |
| Form Factor | Floor‑standing enclosure | |
| External Height | ~1133 mm (44.6 in) | |
| External Width | 600 mm (23.6 in) | |
| External Depth | 825 mm (32.5 in) | |
| Internal Rack Width | 19‑inch EIA‑310 standard | |
| Mounting Rail Type | 10‑32 threaded vertical rails | |
| Maximum Mounting Depth | ~680 mm (26.7 in) | |
| Minimum Mounting Depth | ~150 mm (5.9 in) | |
| Net Weight | ~70–90 kg (154–198 lb) | |
| Static Load Capacity | ~1360 kg (3000 lb) | |
| Dynamic Load Capacity | ~1020 kg (2250 lb) | |
| Color | Black | |
| Material | Heavy‑gauge steel construction | |
| Front Door | Included (typically perforated) | |
| Rear Door | Included (typically perforated) | |
| Side Panels | Included, removable | |
| Roof / Top Panel | Included | |
| Mounting Rails | Adjustable 10‑32 threaded vertical rails | |
| Casters | Pre‑installed | |
| Leveling Feet | Included | |
| Baying Hardware | Included | |
| Cable Management | Rack‑integrated openings and routing features | |
| Airflow | Front‑to‑rear optimized | |
| Compliance Standards | EIA‑310‑E | |
