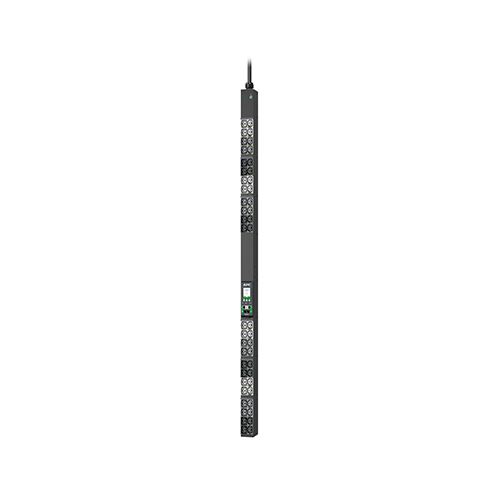

APC APDU11250SM NetShelter Advanced Switched Metered Outlet Rack PDU 11.5kW 415V 3-Phase 20A 520P6 – 48 Outlets Price in Dubai UAE
APC APDU11250SM NetShelter Advanced Switched Metered Outlet Rack PDU 11.5kW 415V 3-Phase 20A 520P6 – 48 Outlets Price in Dubai UAE
Enquire on Whatsapp
Product Description
|
Specifications
|
||
|---|---|---|
| Model | APDU11250SM | |
| PDU Type | Advanced Switched Metered Outlet Rack PDU | |
| Mounting Type | Vertical, 0U (ZeroU) | |
| Input Voltage | 400 V / 415 V AC, 3‑Phase | |
| Input Current | 20 A | |
| Input Connection Type | IEC 60309 520P6 (3P + N + PE) | |
| Maximum Power Capacity | 11.5 kW / 11,500 VA | |
| Total Outlets | 48 | |
| Outlet Types | Combination IEC 60320 outlets (C13, C15, C19, C21) | |
| Metering | Advanced metering (voltage, current, real power, energy) | |
| Outlet Control | Individually switched (remote & local control) | |
| Display | Integrated color LCD for power and status | |
| Network Management | Web, SNMP, Telnet, SSH support | |
| Communication Ports | Dual Ethernet ports (Gigabit & 10/100) | |
| Environmental Sensor Ports | Optional temperature/humidity sensor ports | |
| Alternating Phase Design | Yes (for balanced load distribution and cleaner cable routing) | |
| Cord Length | Approx. 1.8 m | |
| Form Factor | Vertical 0U | |
| Dimensions (H × W × D) | Approx. 1490 × 56 × 75 mm | |
| Net Weight | Approx. 7.5 kg | |
| Operating Temperature | -5 °C to 60 °C | |
| Operating Humidity | 5 – 95 % RH | |
| Color | Black | |
| Certifications | CE, UL/CSA, FCC Part 15, UKCA | |
